Prefabricated Flatpack Container House Labor camp in Malaysia

2015-08-15

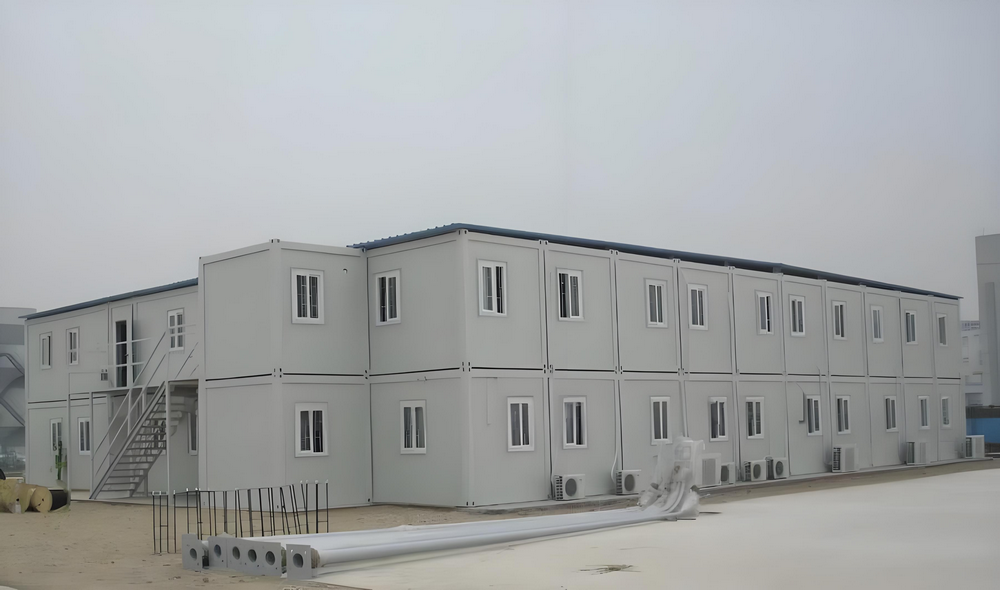

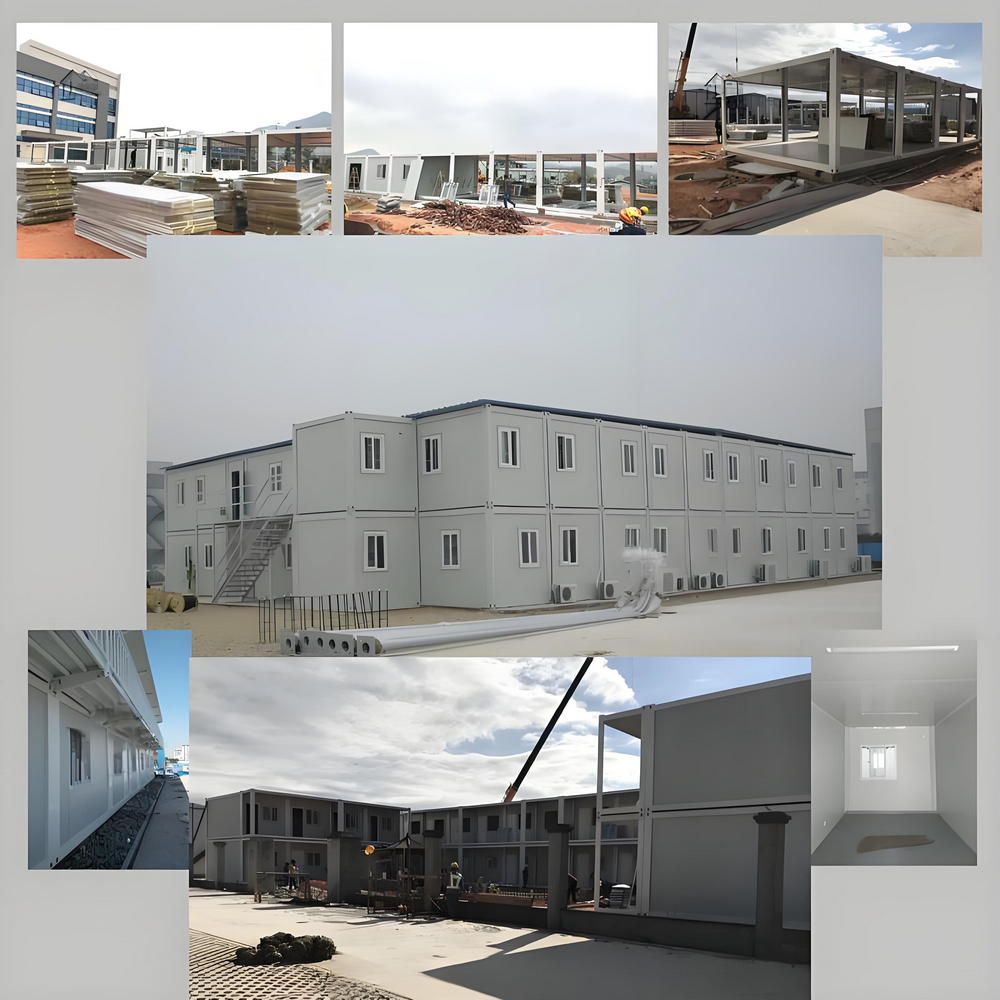

This Container House project is located in Malaysia, it's a big labor camp project for 1500 workers. As customer'srequest, we send our engineers to guide local workers about the installation, which lasts about 3 months.

Project Overview:
Time: 2015
Location: Malaysia
Type: Office and Labor Camp
Area: 280 units

Challenges & Solution:
1. Malaysia's climate is categorsed as equatorial. being hot and humid throughout the vear So we used hot and humidresistance sandwich panel, EPS sandwich panel, for wall and roof.

2. Because of the project want to recycle the container after one construct site finished, so we use this type of flatpackcontainer house. it's strong and can stack to 2 floors, it save land space and client can transport them to other sitesfreely in future.

Details:
Install Size:W2400*L5800*H2800mm ;
Packed Size:W2400xL5800xH460mm

Main Structure :
Column: 160*210*2.5mm Steel Bending;
Roof Beam: 160*120*2.5mm Steel Bending;
Roof Purlin: 80*40*1.8mm Square Tube;
Floor Beam: 160*80*2.5mm Steel Bending;
Floor Purlin: 80*80/40*1.8mm Squre Tube;
Wall:50mm/0.326mm EPS sandwich Panel;
Roof: 0.45mm Color Steel sheet+0 3mm currangated steel sheet+ glass wool insulation + color steel celing.Door:800*2000mm*1set;
Window:1125*1200mm*2set( with security bar)
Floor: 18mm MgO panel+PVC floor+PVC skriting

The fact shows that we satisfied client's expect by using this type of container house, recycleable, fast instal, cosy
This camp is for many purposes, such as accommodation, office, storage, canteen, guard house etc.
